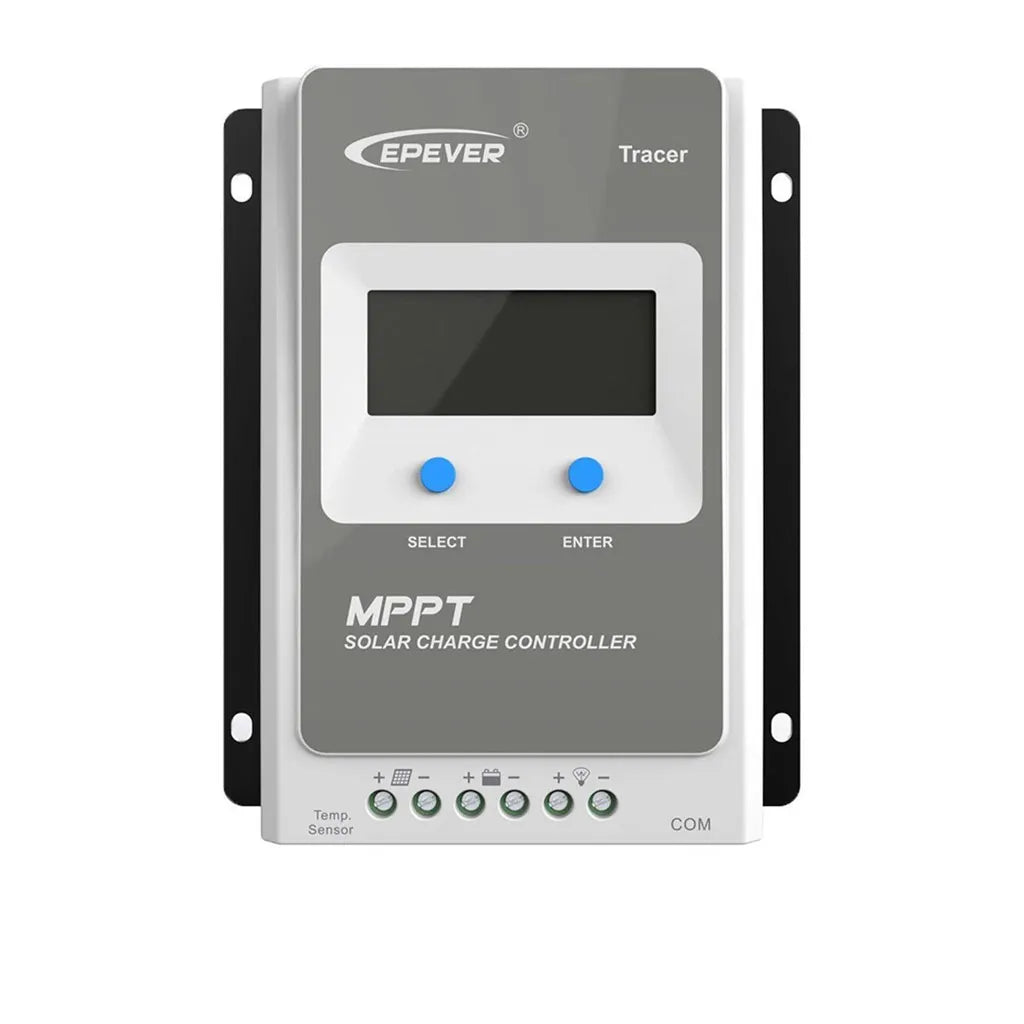

Tracer (Epever) MPPT Solar Charge Controller 20A 12/24V

Out of stock
SKU: 8005076
Regular price $229.00

This is the new Tracer AN Series MPPT controller, only recently released.

Tracer model 2010AN

A genuine MPPT controller contains a maximum power point (MPP) tracker, which finds the MPP voltage of your array. Any additional voltage is converted into current. On 12V panels, you can expect a 10-15% improvement during bulk charging. However, the main benefit is the ability to run a higher voltage array on a lower voltage battery bank, up to 100V. This reduces the cost of wiring, connectors and circuit protection.

Improvements include

  • Inbuilt display showing real-time data

  • Integration with MT-50 display

  • Faster, more accurate tracking (Immediate on boot up, 99.5% accuracy)

  • Higher conversion efficiency (98%)

  • Ability to connect a larger array. The controller has the ability to restrict the charging current, so it does not exceed 20A The benefit it more power during off off peak times.

  • Electronic protection: over charging, over discharging, overload, short circuit, and reverse polarity.

Dimensions

  • W154 x H224 x D52mm

Features

  • Battery voltage: 12V/24V (auto detect)

  • Maximum PV Open-circuit Voltage (Voc): 100V Max

  • Rated PV Size: 260W/520W

  • Max PV Size: 1360W

  • Maximum PV Current: 20A

  • Maximum charging Current: 20A

  • Maximum Load Current: 20A

  • Working temperature: -20 ~ +45C

  • Weight: 1.1 kg

2 year warranty
