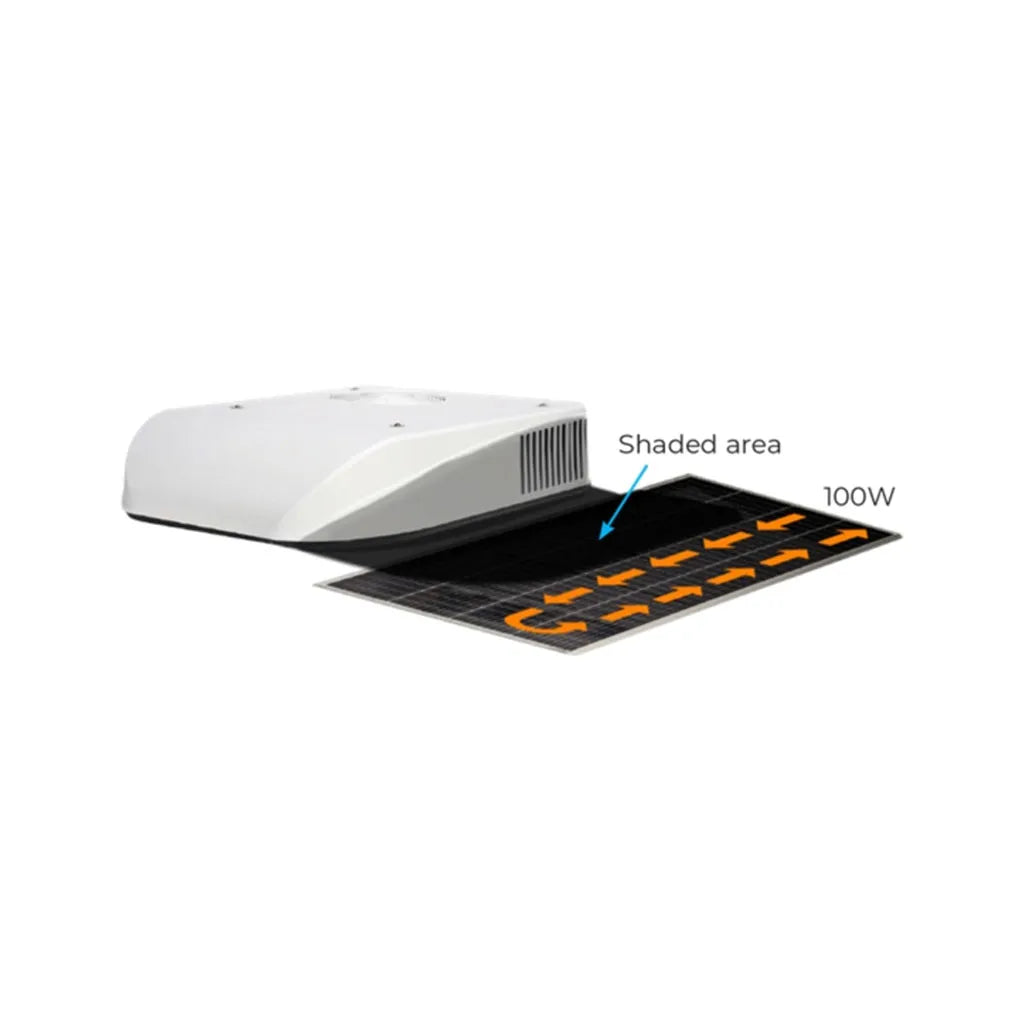

The innovative Sphere Twin Cell Solar Panel utilises twin cell technology which improves performance and efficiency even when your solar panel is in partial shade. It is simply the best solution for tackling the common issue of partial shading that can drastically reduce the output of conventional solar panels.

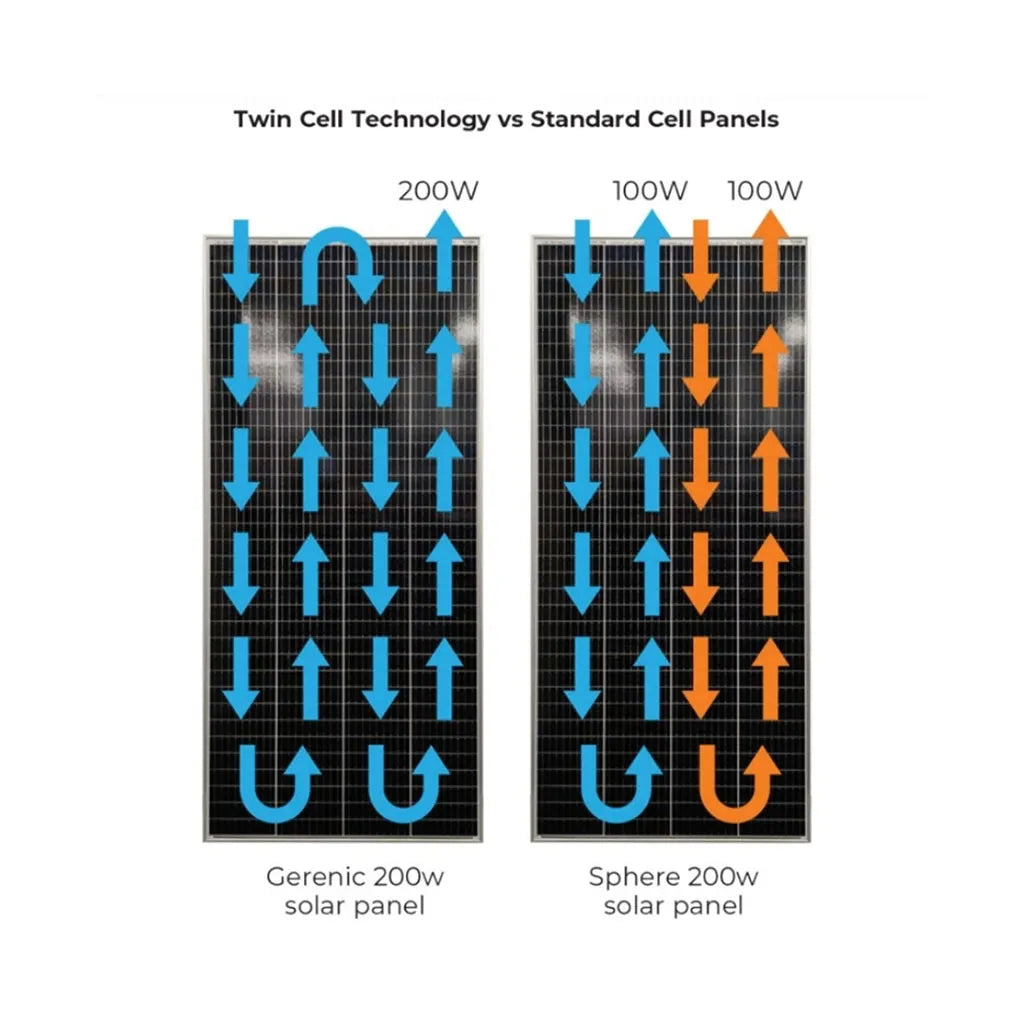

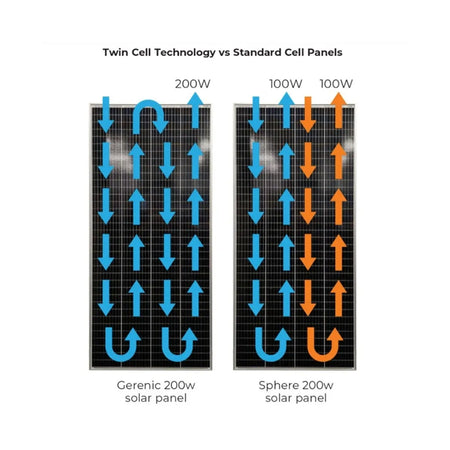

• The unique parallel design allows each side of the panel to function independently from the other.
• Improved cell efficiency enabling 200W from a 180W footprint
• An anodized aluminium frame to withstand rust with pre-drilled mounting holes for a versatile range of applications

Specifications

• Dimensions: 670mm(w) x 1480mm(h) x 35mm(d)
• Weight: 11kg
• Guarantee of power output: <=10 Years: >=90%, <=25 Years: >=80%
• Material Warranty: 1 Year
• By-passed diodes to improve reliability and further minimize power drops caused by shade
• Antireflective, high transparency tempered glass for durability
• IP65-rated junction box provides complete protection against dust and water

Electrical Performance

• Standard Test Conditions: 1000W/M2,1.5AM,25
• Peak Power Output (W): 200 W
• Power Output Tolerance(%): 3%
• Maximum Power Voltage (V): 20.6
• Maximum Power Current (A): 9.71
• Short Circuit Current(A): 9.85
• Open Circuit Voltage(V): 24.1
• Maximum System Voltage: 1000V/DC

Mechanical Performance

• Junction Box Type: 0.9 m 4mm 2 solar cable fitted with MC 4 IP65
• Number of Cells: 4 x 18 72 72pcs
• Module Size: 670(w) x 1480(h) x 35/30/1.2(d)mm
• Module Net Weight: 11kg

Temperature Coefficient

• Working Temperature: -40 ~85°C
• Power TK: -0.45% / °C
• Open Circuit Voltage T: 0.33% / °C
• Short Circuit Current T: 0.045% / °C
• Test temperature: 25 ±2°C
