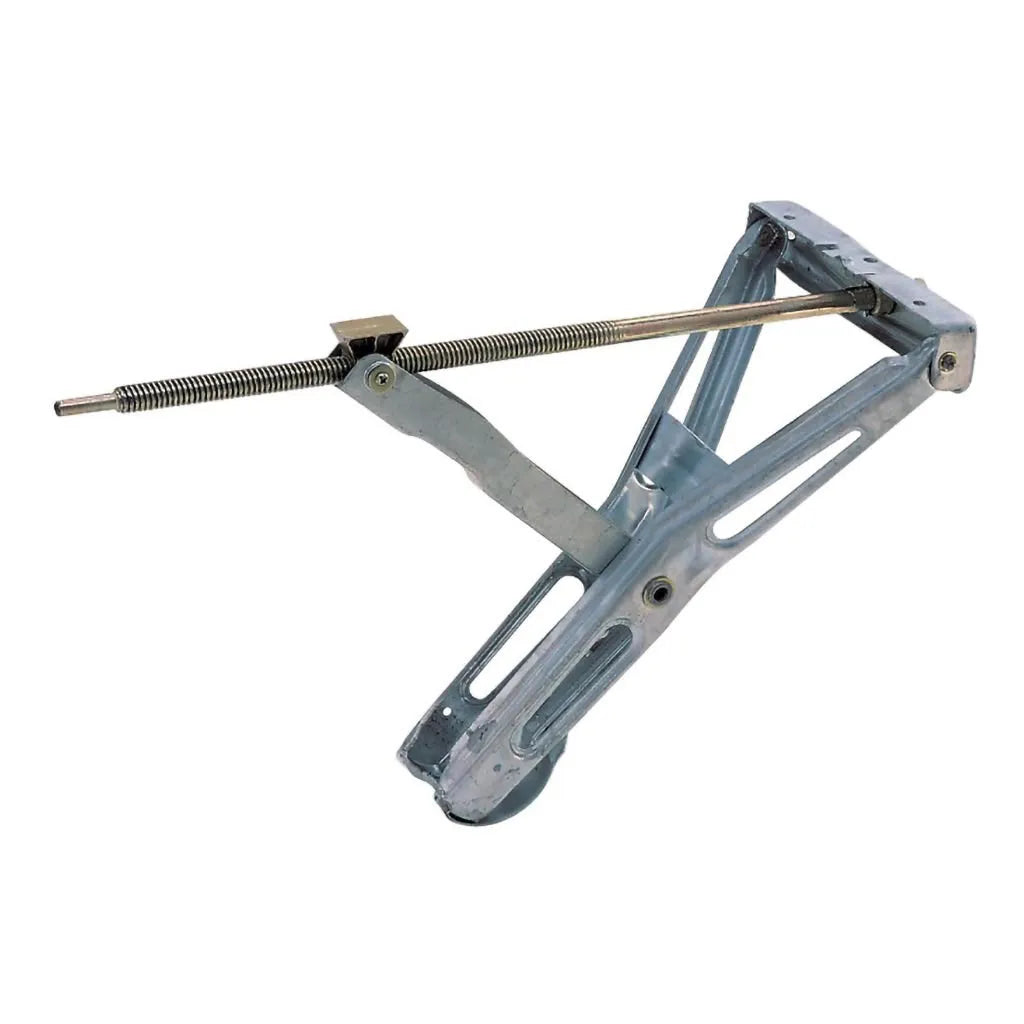

AL-KO Corner Steady 1000kg
Product Code: 8003927
AL-KO Corner Steadies develop the maximum load bearing capacity from a setting angle of 45 degrees. If the corner steady is set flatter, the load bearing capacity is reduced.
Suitable for rear fitment to all caravans on an AL-KO Chassis, either as a replacement, or as an upgrade.
Those steadies are easy to operate and provide a stable footing on which to level your caravan. They must not be used as a jacking device for changing tyres etc.
Particularly stable due to the pressed side profiles and strong threaded spindles
Easy to fit mounting brackets are provided on the chassis which allow fast and easy fitment of corner steadies
Finish: hot dip galvanised Zinc coating with a layer thickness of up to 70 µm - makes it almost indestructible
Solid and robust steel construction
Load bearing capacity: 1000kg
Suitable for caravans with MTPLM of up to 2000kg
Clean and grease the threaded spindles regularly
Minimum recommended angle of incidence 30 degrees - Load carrying capacity approximately 70%
Maximum recommended angle of incidence 60 degrees
